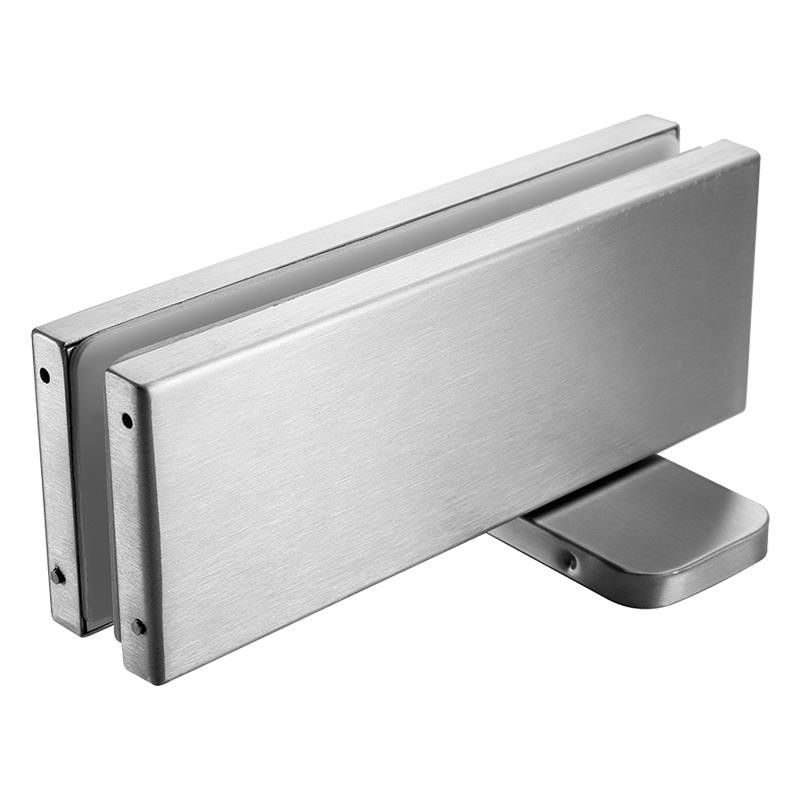

Ozone Hardware - Concealed Floor Spring for Glass Door

Tractable with EN 1154

• • Requires No Digging Or Cutting Of Floor, Speedy and simplicity installation with just 4 fasteners
  • Fitted door heaviness: Max 80kg.
  • Fitted door width: 750~950mm
  • Fitted door thickness: 8~12mm
  • Ultimate unbaring 150° and controlled 135°
  • Continuity-500,000 Cycles Proved
  • Fitted for Fire/Smoke Doors upto 40 min, Testing done by Intertek as per EN 1634-1:2008
  • Ambient temperature: -20°C to +50°C
  • Simplicity installation with ground seat adjustable:
    +3mm backward and forward,+3mm left and right and
    4° alignment adjustment
  • Compliance With EN 1154
  • Carry through: SSS/PSS
